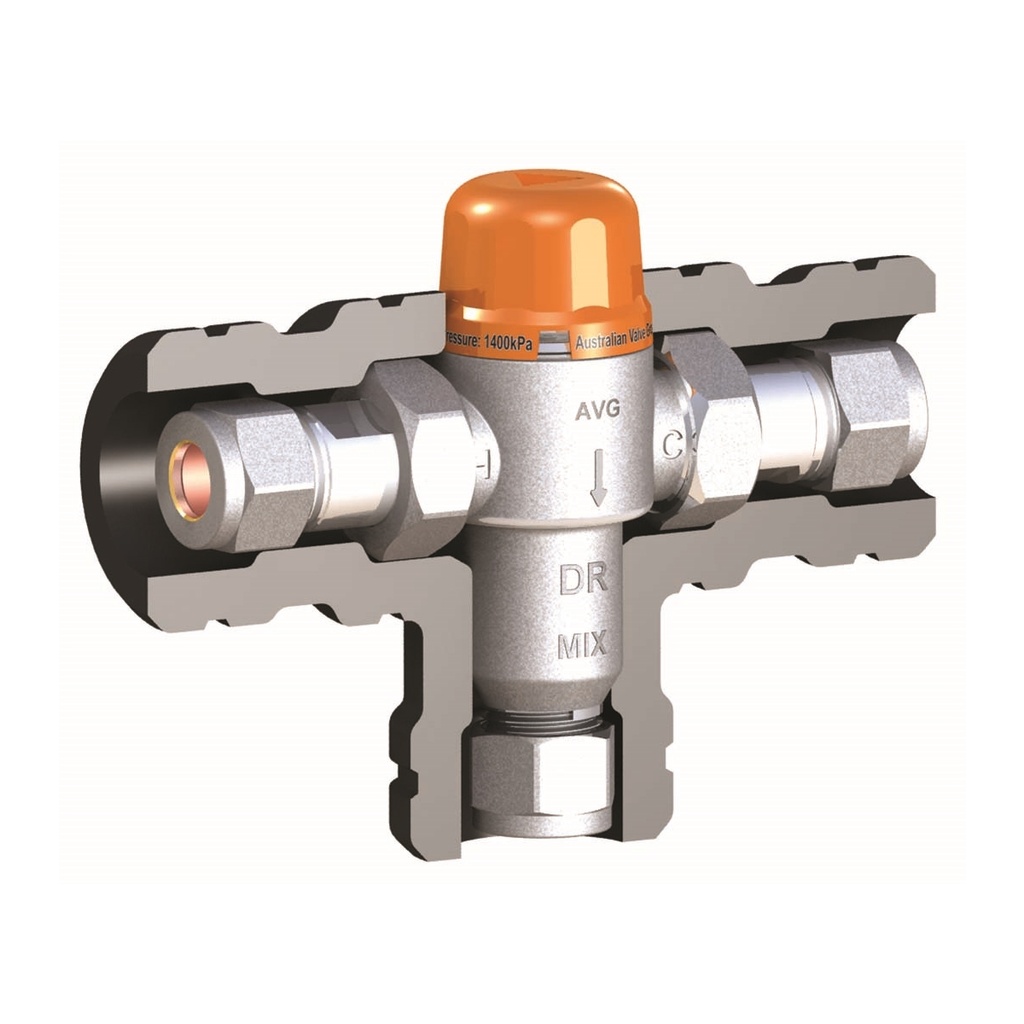

AVG Tempering Valve 15mm - High Performance Orange Cap c/w Insulation

Login | Register to see price
( Units)

    This combination does not exist.

    IN STOCK - Will ship today
    Details


    Product Code :
    FTV15HP
    Share :

    Description

    The FORGE High Performance Tempering Valve is perfect for applications needing to mix hot and cold water to deliver a continuous temperate water temperature through a hot water system. Higher hot water supply temperature rating so as to be suitable for solar hot water applications. Flow rate 4 liters per minute. Will supply 50C mix with 55C hot supply.

    Features

     Integral mesh strainers
     Cast DR brass body
     Integral non return valves
     Innovative polymers for greater resistance to calcium deposits
     Factory set at 50°C (must be commissioned on site)
     Tested and certified to AS 4032.2
     Insulation jacket provided as per AS 4032.2

    Cold water supply temperature
    5°C - 30°C
    Hot water supply temperature
    60°C - 99°C
    Adjustable outlet temperature
    40°C - 50°C
    Set temperature
    50°C Standard (Must be commissioned on site by installer)
    Accuracy of outlet temperature
    ±3°C ( as per AS 4032.2)
    Minimum temperature differential
    15°C < (between hot supply and outlet temperature)
    Maximum working pressure (static)
    1400Kpa
    Maximum working pressure (dynamic)
    500Kpa
    Pressure supply differential (dynamic)
    2:1 Max
    Maximum permitted pressure variation in either supply
    To control outlet temperature to ±3°C (from supply pressure at commissioning) ±10% Max
    Minimum flow rate
    3.6 L/Min under outlet pressure 10Kpa
