Description

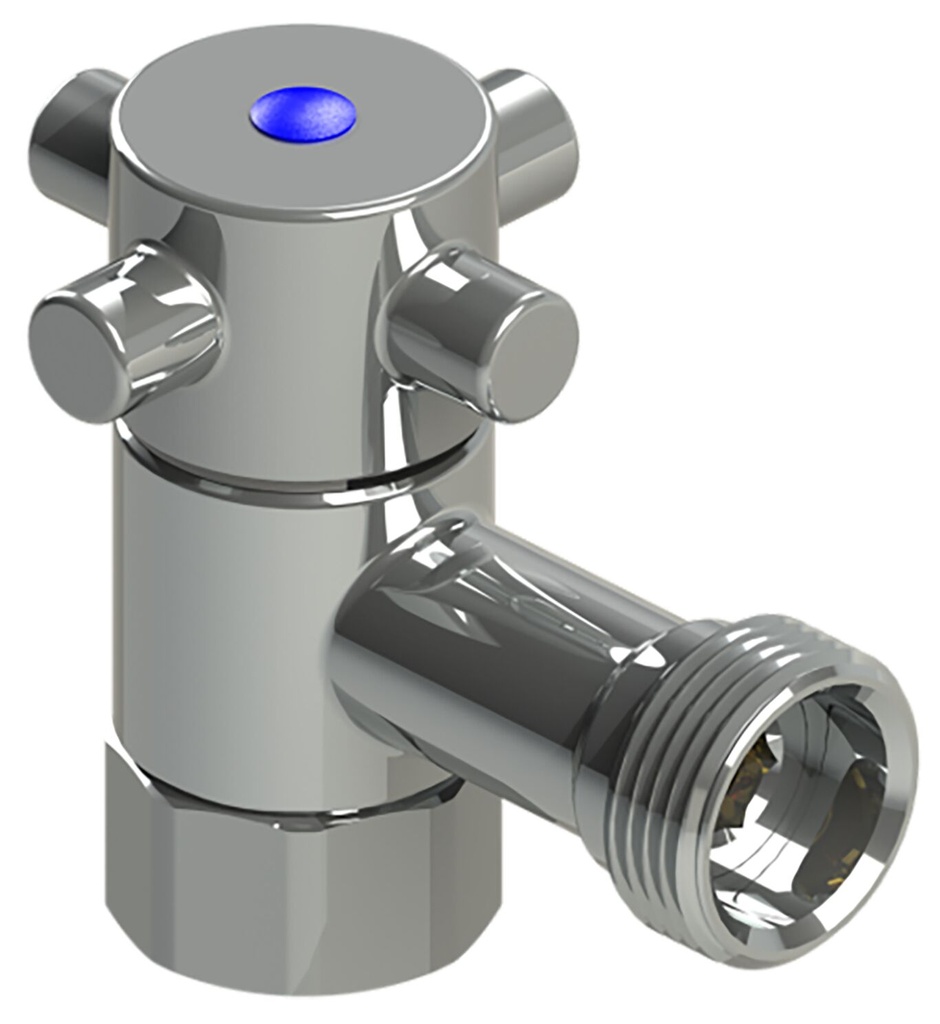

The “MAXISTOP” (MST) is a point of use isolation and pressure reducing pressure limiting valve. The Maxistop range is a revolutionary new approach to point of use isolation valves incorporating a pressure limiting function. When it comes to protecting flexible hoses, mixer tap cartridges, fridges and appliances etc. from excess pressure the new MST is the perfect choice. Quick and easy installation with a soft seal inlet connection and firm all positional swivel outlet connection. Pressure limiting function (factory set 350kPa).
Features
| High quality polished chrome finish |
| No need for thread seal tape/sealant |
| Quick and easy installation with a soft seal inlet connection |
| Firm all positional swivel outlet connection |
| Smooth quarter turn on/off operation |
| Optional hot or cold indicator buttons |
| Plumbing system, tap cartridges, hose and appliance over pressure protection |
| Ideal for washing machine and dishwashing machines to help reduce water hammer and most pipe noises |
| Pressure limiting function (factory set 350kPa) |
- Body & Handle
- Polished Chrome
- Ball
- DZR Brass
- Inlet
- 15mm female
- Outlet
- All positional swivel 20mm male
- O rings
- EPDM
- Seals
- PTFE/EPDM
- Pressure setting
- 350kPa
- Flow rate
- 10 litres/min
- Max temp
- 80ºC
- Approvals
- AS1357.2 Watermark
